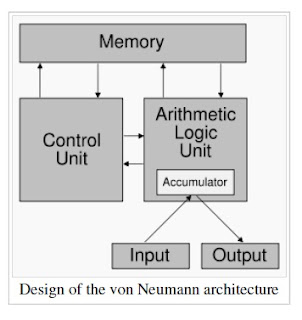

The von Neumann architecture is a computer design model that uses a processing unit and a single separate
storage structure to hold both instructions and data. It is named after mathematician and early computer scientist John von Neumann. Such a computer implements a universal Turing machine, and the common
"referential model" of specifying sequential architectures, in contrast with parallel architectures. The term "stored-program computer" is generally used to mean a computer of this design, although as modern computers are usually of this type, the term has fallen into disuse.
History
The earliest computing machines had fixed programs. Some very simple computers still use this design, either for simplicity or training purposes. For example, a desk calculator (in principle) is a fixed program computer. It can do basic mathematics, but it cannot be used as a word processor or to run video games. To change the program of such a machine, you have to re-wire, re-structure, or even re-design the machine.
Indeed, the earliest computers were not so much "programmed" as they were "designed". "Reprogramming", when it was possible at all, was a laborious process, starting with flow charts and paper notes, followed by detailed engineering designs, and then the often-arduous process of physically re-wiring and re-building the
machine.
The terms "von Neumann architecture" and "stored-program computer" are generally used interchangeably, and that usage is followed in this article. However, the Harvard architecture concept should also be mentioned, as a design which stores the program in a modifiable form, but without using the same physical storage or format as for general data.
A stored-program design also lets programs modify themselves while running, effectively allowing the computer to program itself. One early motivation for such a facility was the need for a program to increment or otherwise modify the address portion of instructions, which had to be done manually in early designs. This became less important when index registers and indirect addressing became customary features of machine architecture. Self-modifying code has largely fallen out of favor, since it is very hard to understand and debug, as well as inefficient under modern processor pipelining and caching schemes.
storage structure to hold both instructions and data. It is named after mathematician and early computer scientist John von Neumann. Such a computer implements a universal Turing machine, and the common
"referential model" of specifying sequential architectures, in contrast with parallel architectures. The term "stored-program computer" is generally used to mean a computer of this design, although as modern computers are usually of this type, the term has fallen into disuse.
History
The earliest computing machines had fixed programs. Some very simple computers still use this design, either for simplicity or training purposes. For example, a desk calculator (in principle) is a fixed program computer. It can do basic mathematics, but it cannot be used as a word processor or to run video games. To change the program of such a machine, you have to re-wire, re-structure, or even re-design the machine.
Indeed, the earliest computers were not so much "programmed" as they were "designed". "Reprogramming", when it was possible at all, was a laborious process, starting with flow charts and paper notes, followed by detailed engineering designs, and then the often-arduous process of physically re-wiring and re-building the
machine.
The terms "von Neumann architecture" and "stored-program computer" are generally used interchangeably, and that usage is followed in this article. However, the Harvard architecture concept should also be mentioned, as a design which stores the program in a modifiable form, but without using the same physical storage or format as for general data.
A stored-program design also lets programs modify themselves while running, effectively allowing the computer to program itself. One early motivation for such a facility was the need for a program to increment or otherwise modify the address portion of instructions, which had to be done manually in early designs. This became less important when index registers and indirect addressing became customary features of machine architecture. Self-modifying code has largely fallen out of favor, since it is very hard to understand and debug, as well as inefficient under modern processor pipelining and caching schemes.
Early stored-program computers
The date information in the following chronology is difficult to put into proper order. Some dates are for first running a test program, some dates are the first time the computer was demonstrated or completed, and some dates are for the first delivery or installation.
- The IBM SSEC was a stored-program electromechanical computer and waspublicly demonstrated on January 27, 1948. However it was partially electromechanical, thus not fully electronic.
- The Manchester SSEM (the Baby) was the first fully electronic computer to run a stored program. It ran a factoring program for 52 minutes on June 21, 1948, after running a simple division program and a program to show that two numbers were relatively prime.
- The ENIAC was modified to run as a stored-program computer (using theFunction Tables for program ROM) and was demonstrated as such on September 16, 1948, running a program by Adele Goldstine for von Neumann.
- The BINAC ran some test programs in February, March, and April 1949,although it wasn't completed until September 1949.
- The Manchester Mark I grew out of the SSEM project. An intermediate version of the Mark I was available to run programs in April 1949, but it wasn'tcompleted until October 1949
- The EDSAC ran its first program on May 6, 1949.
- The EDVAC was delivered in August 1949, but it had problems that kept it from being put into regular operation until 1951.
- The CSIR Mk I ran its first program in November 1949.
- The SEAC was demonstrated in April 1950.
- The Pilot ACE ran its first program on May 10, 1950 and was demonstrated in December 1950.
- The SWAC was completed in July 1950. The Whirlwind was completed in December 1950 and was in actual use in April 1951.
- The first ERA Atlas (later the commercial ERA 1101/UNIVAC 1101) was
installed in December 1950.
